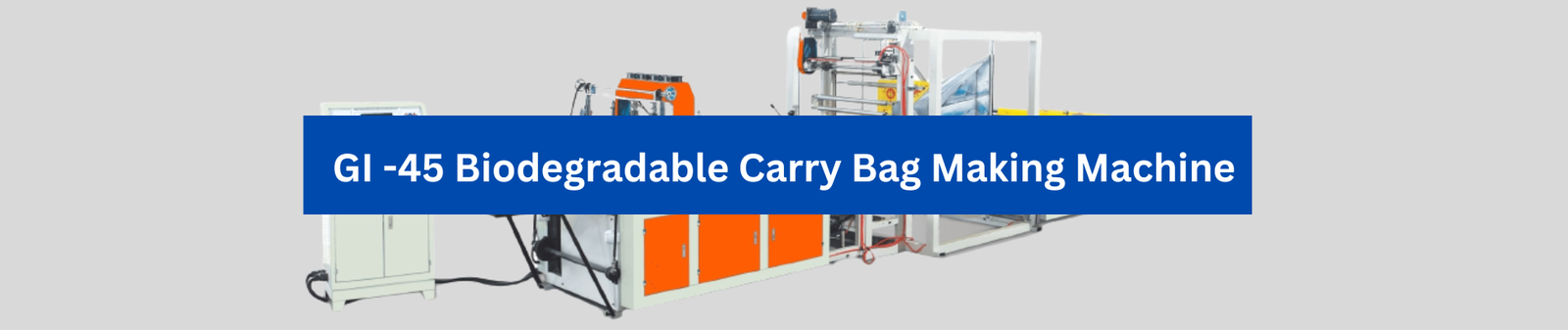

GI -45 Bio Carry Bag Making Machine
Top-quality GI -45 Bio Carry Bag Making Machine
We present you the high performance GI -45 Bio Carry Bag Making Machine at budget-friendly prices. These machines are named so because of their nature of producing high-quality range of patterned Bio Carry Bag. These carry bag are designed in packet form to give them unique shape and appearance.
Noted Manufacturers of GI -45 Bio Carry Bag Making Machine from Buxar
Grow India is known for their efficient and durable GI -45 Bio Carry Bag Making Machine that are sturdy in nature and are capable of producing 50 Carry Bag per minute. Moreover, before we deliver these machines to the destination, we make sure that the machines are quality-checked.
Features
Our GI -45 Bio Carry Bag Making Machine manifest a myriad of features which include hassle-free operation, low maintenance, longer service life, low power consumption, negligible noise, don t need much maintenance, high tank capacity, Rough and tough built, and high performance.
Size & Specifications
| BARRAL | Made of Nitrating Steel Single Piece Constructions ground and honed to high surface finish and close tolerance Material;-41 B Mosko |
|---|---|
| Treatment | Gas Nitrating with Tangastion Carbon Coated |
| Heating | Heating is Two Zones Out of which zone 2 is cooled by 0.25 hp Blower |
| Heating Load | 4.9 kw |
| SCREW | Made of Nitrating steel harden and Ground with special Mixing head and shear element |
| Diameter | 45 MM |
| L / D Ratio | 27;1 |
| Treatment | Gas Nitrating with Tangastion Carbon Coated |
| Capacity | 55 to 60 kg/ Hr .of Bio Degradable (works on solid bed Pumping, Outputs can vary ( ± ) 15% depending on melt index, bulk Density, hardness, co-efficient of friction and shape of pellets) |
| Frequency Drive | 15 H.P ( Make :- ABB ) AC Variable Drive of standard make the drive is digital and self diagnostic |
| Gear Box | 140 CD Helical Gear Box with integral trust bearing. The lubrication is thought oil splashing. ( Make :- ZEAL ) |
| Pulley | Suitable as required. |
| DIE | Made of alloy steel ground polished Plated the lip size is 150 MM ( 6 " ) |
| Heat Zone | 3 Nos |
| Heat Load | 5.78 kw. |
| Candle Filter | A special Candle Filter would be provided This would ensure filter Changed-overtime reduced 100%. One does not need to disturb the die or extruder while changing the filter. |
| 3.1.1 COOLING RING | One Cooling ring suitable for 150 MM Punch lip size. Cooling Ring made from alumiim alloys and has a adjustable Lip size. Cooling Ring made from air flow control |
| 3.1.1 Blower | A High capacity medium pressure Blower Provided 5 H.P Blower. With Frequency Drive. A damper value is provided on the suction side for control of air quantity. |
| TAKE OFF | Fabricated from Heavy channel and angle . Machine Tower Having a Height of 14 feet. |
| Bubble Basket | A Variable Height and variable diameter ring is fixed over the tower for holding the bubble Property. |
| Nip Rolls | The Nip rolls can handle tubing size 34" Inch. The Nip Roll Size 36" .They are actuated by Two pneumatic cylinders and a solenoid value. |
| Drive | The drive is thought 1.0 H.p Geared. AC Motor Controlled by variable frequency Drive by 1 H.p. |
| Speed | 10 to 80 mts/min. |
| Flattening Board | The board is made up to wooden slats fixed over Pipe Frame he boards can be finely adjusted to get wrinkle free tubing. |
| Winder | Single Station Surface winder provided with two winding shafts |
| Drive | The drive is through 1 H.p Tourque Motor with ISI Brand |
| CONTROL PANAL | The Control Panel is made of heavy sheet metal and is front opening type with powder coting |
| Temperature Controller | 5 Temperature controllers and 1 water temperature indicators with Multispan / Select. |
| Other Starters | All the other starters are suitable provided. |
